Docker를 활용한 openLDAP 서버구축 방법

LDAP Client 설치

• Apache Directory Stuio (LDAP Client)
  • https://directory.apache.org/studio/downloads.html
• Java JDK
  • https://www.oracle.com/kr/java/technologies/downloads/#jdk22-windows

LDAP TG 연동 및 Apache Directory Studio 사용법 참고

• [Download] QA Server 및 환경 정보 문서
• ATAC Link

LDAP 개념 강의

• What is LDAP and how to use in Active Directory (9:36)
  • https://www.youtube.com/watch?v=mG3yNCHeQiY





1. YAML 작성

version: "3.8"

services:
  openldap:
    image: osixia/openldap:latest
    container_name: openldap
    ports:
      - "389:389"
      - "636:636"
    volumes:
      - ./data/certificates:/container/service/slapd/assets/certs
      - ./data/slapd/database:/var/lib/ldap
      - ./data/slapd/config:/etc/ldap/slapd.d
    environment:
      LDAP_LOG_LEVEL: "256"
      LDAP_ORGANISATION:
      LDAP_DOMAIN: "ahntest.com"
      LDAP_ADMIN_USERNAME: "admin"
      LDAP_ADMIN_PASSWORD: "admin"
      LDAP_CONFIG_PASSWORD: "config"
      LDAP_BASE_DN: "dc=ahntest,dc=com"
      LDAP_TLS_CRT_FILENAME: "ldap.crt"
      LDAP_TLS_KEY_FILENAME: "ldap.key"
      LDAP_TLS_CA_CRT_FILENAME: "ahntest.com.ca.crt"
      LDAP_READONLY_USER: "true"
      LDAP_READONLY_USER_USERNAME: "readonly"
      LDAP_READONLY_USER_PASSWORD: "readonly"
    networks:
      - openldap

  phpldapadmin:
    image: osixia/phpldapadmin:latest
    container_name: phpldapadmin
    hostname: phpldapadmin
    ports:
      - "8080:80"
    environment:
      PHPLDAPADMIN_LDAP_HOSTS: "openldap"
      PHPLDAPADMIN_HTTPS: "false"
    depends_on:
      - openldap
    networks:
      - openldap

networks:
  openldap:
    driver: bridge

2. 컨테이너 생성

docke-compose up -d

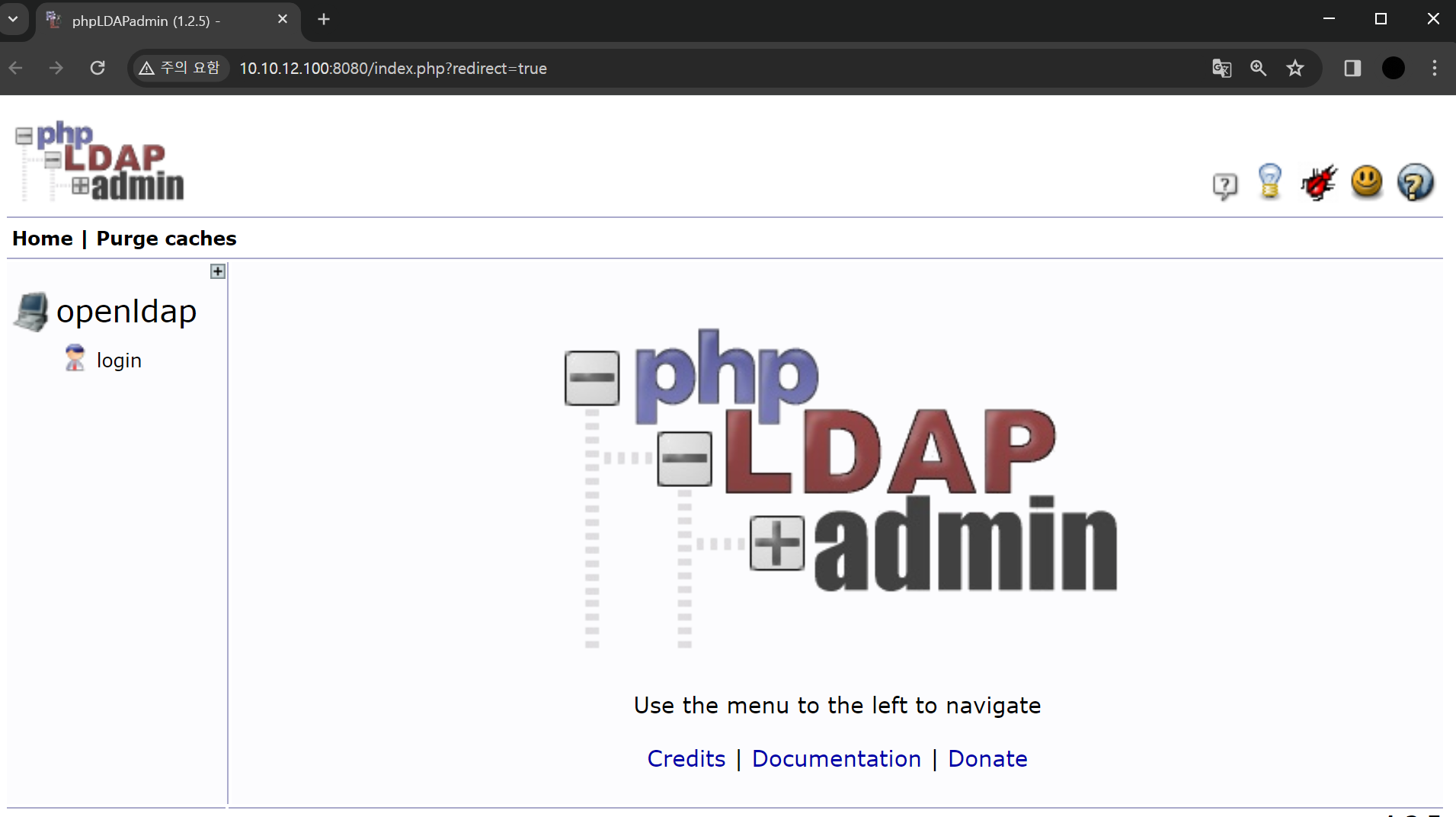

3. Web 접속

{host ip}:8080

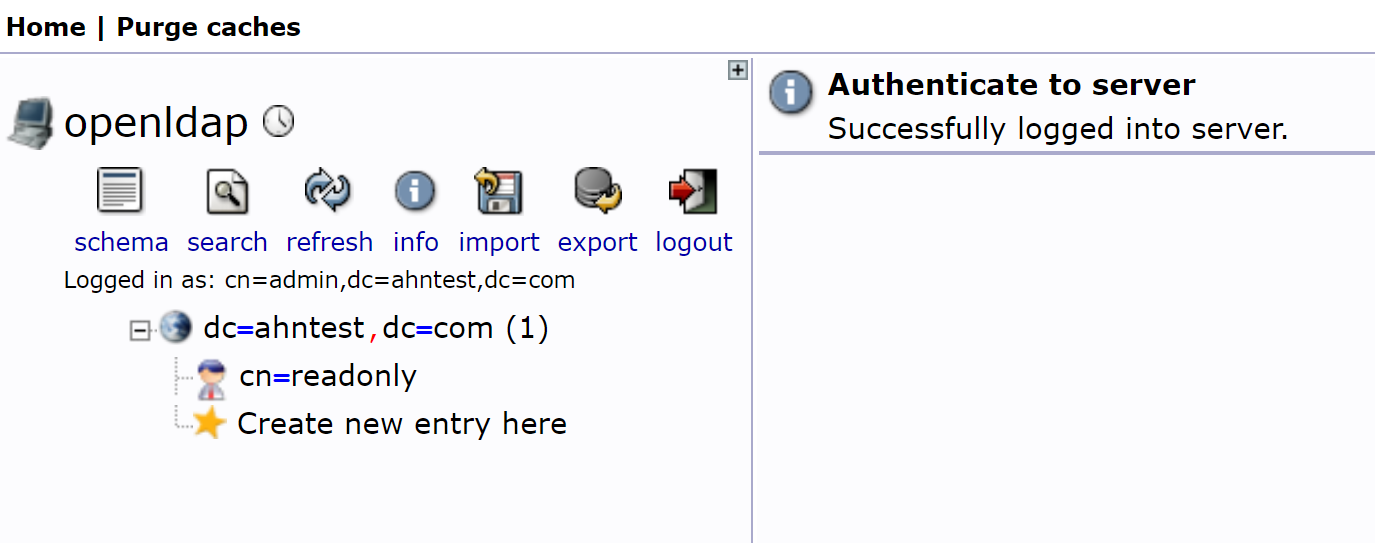

4. Login

cn=admin,dc=ahntest,dc=com

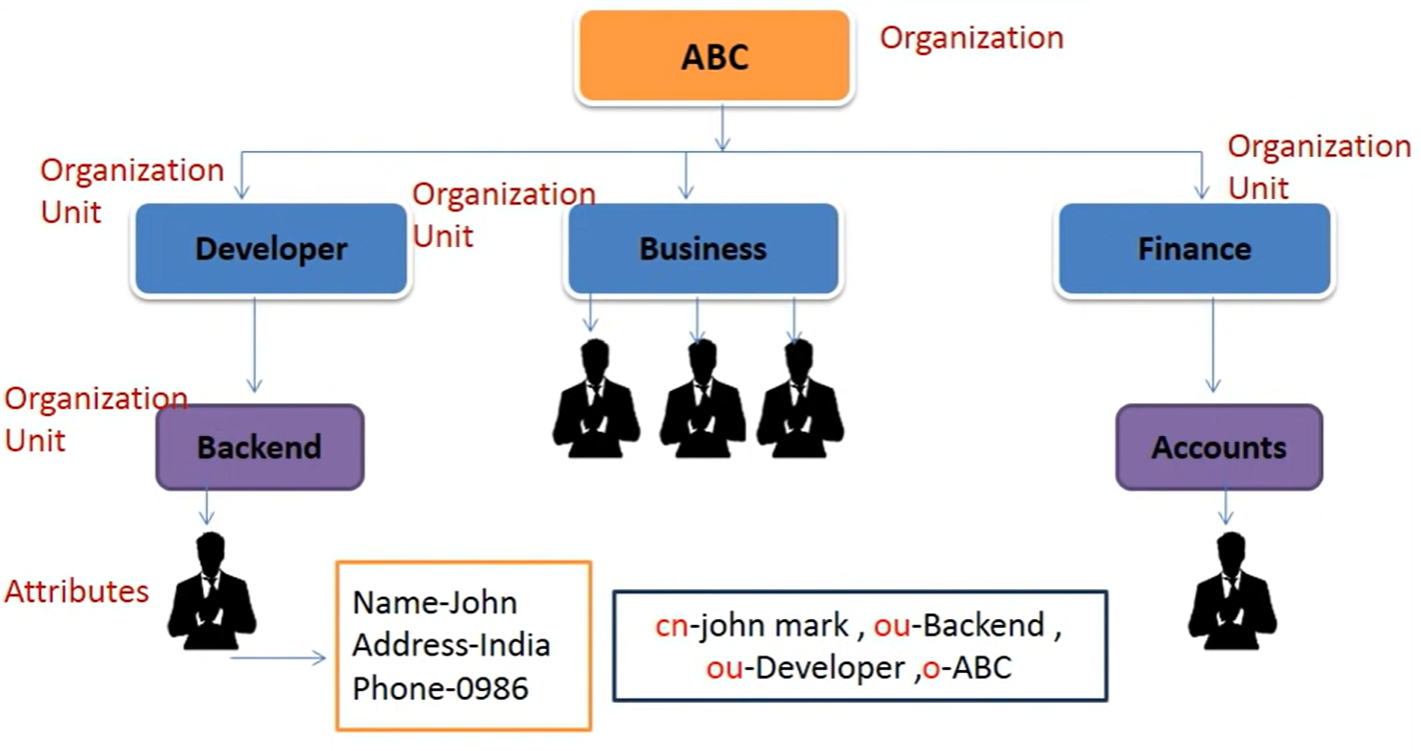

5. LDAP 기본 구조

o - organization name
ou - organization unit
cn - common name
su -sur name
dn - distinguish name

User - inetOrgPerson / groupsOfUniqueName  -→ Object

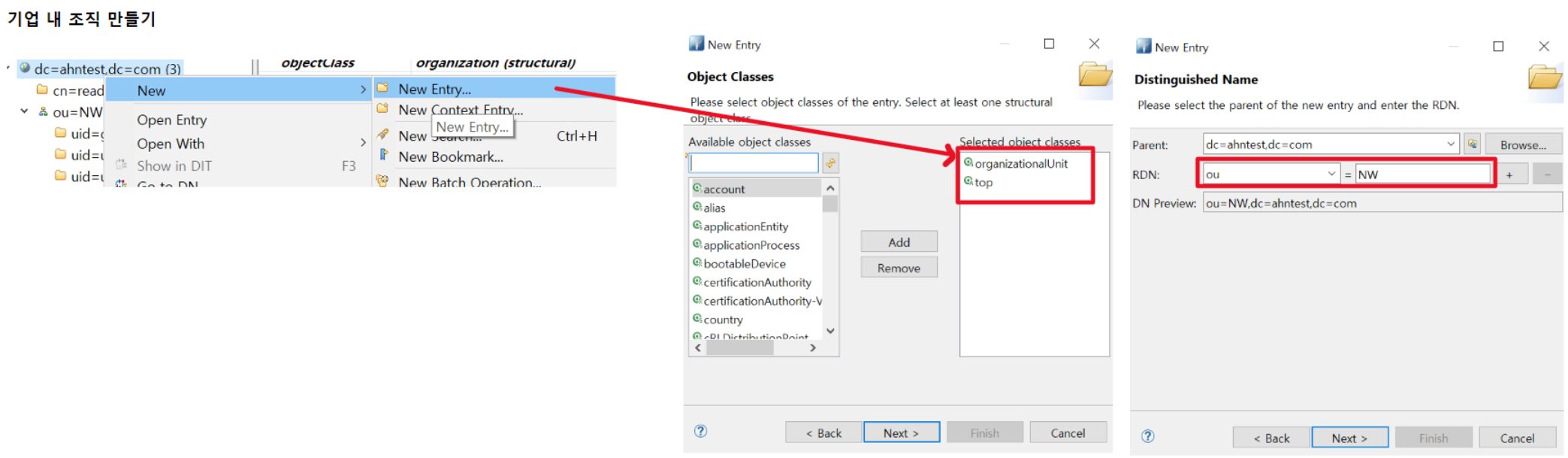

6. LDAP Client 사용법

[server 연결]
